MSI

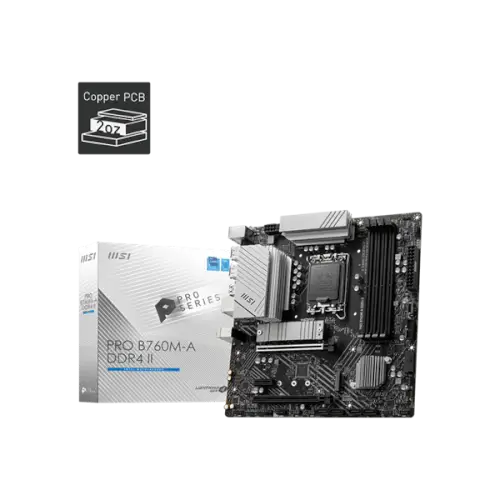

לוח אם PRO B760M-A DDR4 II

סוג לוח

Intel

גודל לוח

Mini ATX

Chipset

Intel B760

תושבת CPU

LGA 1700

CPU נתמך

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

חריצי הרחבה לזיכרון

4

נפח RAM מקסימלי נתמך

128GB

חיבורי תצוגה

2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

חריצי הרחבה PCI-E

2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

חיבורי אחסון

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

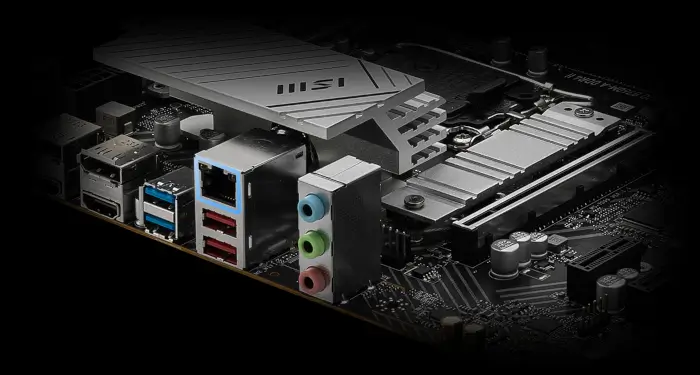

חיבורי USB פאנל אחורי

2x USB 2.0 (Rear),2x USB 3.2 Gen1 Type A (Rear),2x USB 3.2 Gen2 Type A (Rear)

כרטיס רשת LAN

Realtek® RTL8125BG 2.5G LAN

חיבורי שמע

Realtek® ALC897 Codec 7.1-Channel High Definition Audio

חיבורים פנימיים נוספים

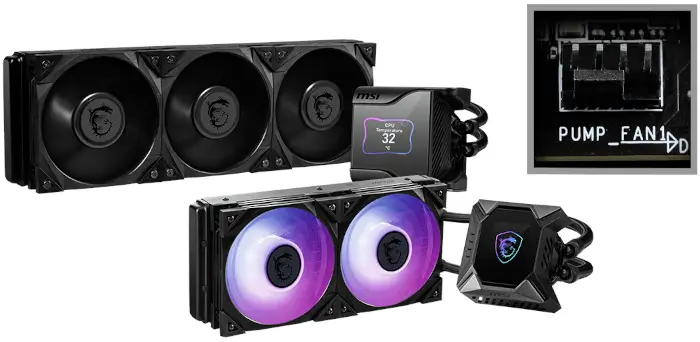

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports

מערכות הפעלה נתמכות

Windows® 11 64-bit, Windows® 10 64-bit

מימדים

243.84x243.84 מ"מ

תכולת אריזה

כבל SATA, ברגים
