MSI

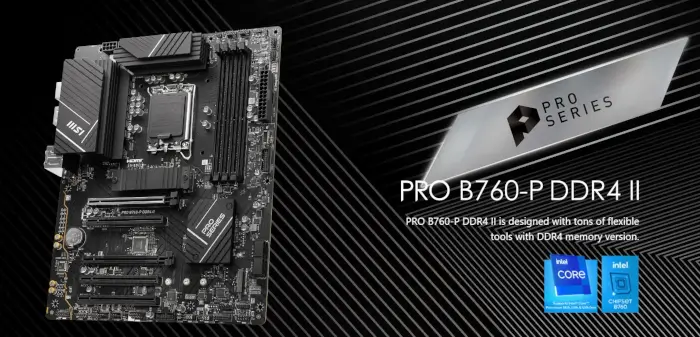

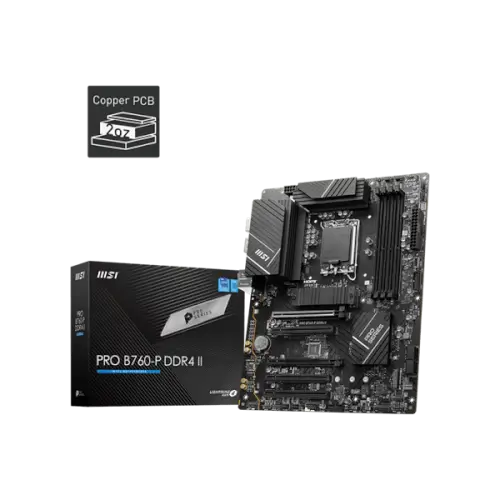

לוח אם PRO B760-P DDR4 II

סוג לוח

Intel

גודל לוח

ATX

Chipset

תושבת CPU

LGA 1700

CPU נתמך

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

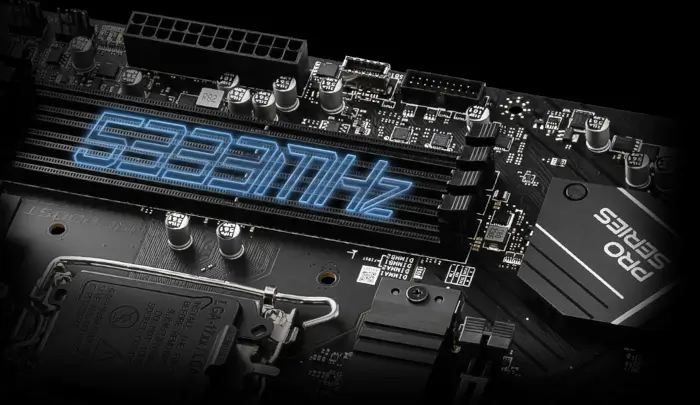

חריצי הרחבה לזיכרון

4

נפח RAM מקסימלי נתמך

128GB

חיבורי תצוגה

1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

חריצי הרחבה PCI-E

5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

חיבורי אחסון

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G

חיבורי USB פאנל אחורי

2x USB 2.0 (Rear), 2x USB 3.2 Gen1 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear)

כרטיס רשת LAN

Realtek® RTL8125BG 2.5G LAN

חיבורי שמע

Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

חיבורים פנימיים נוספים

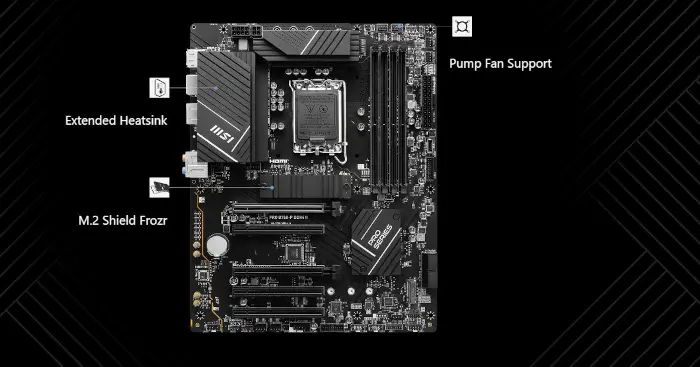

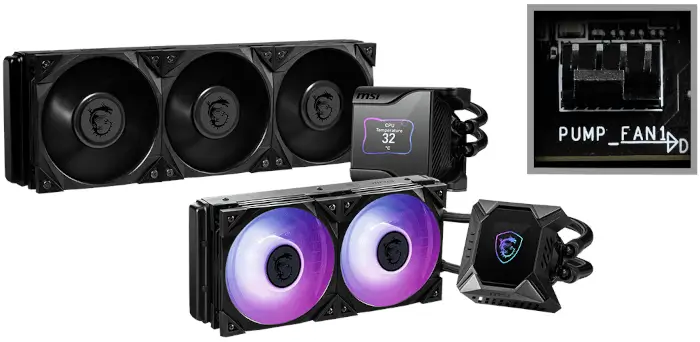

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports

מערכות הפעלה נתמכות

Windows® 11 64-bit, Windows® 10 64-bit

מימדים

243.84x304.8 מ"מ
